4015.XTSR060 (70-240kg)

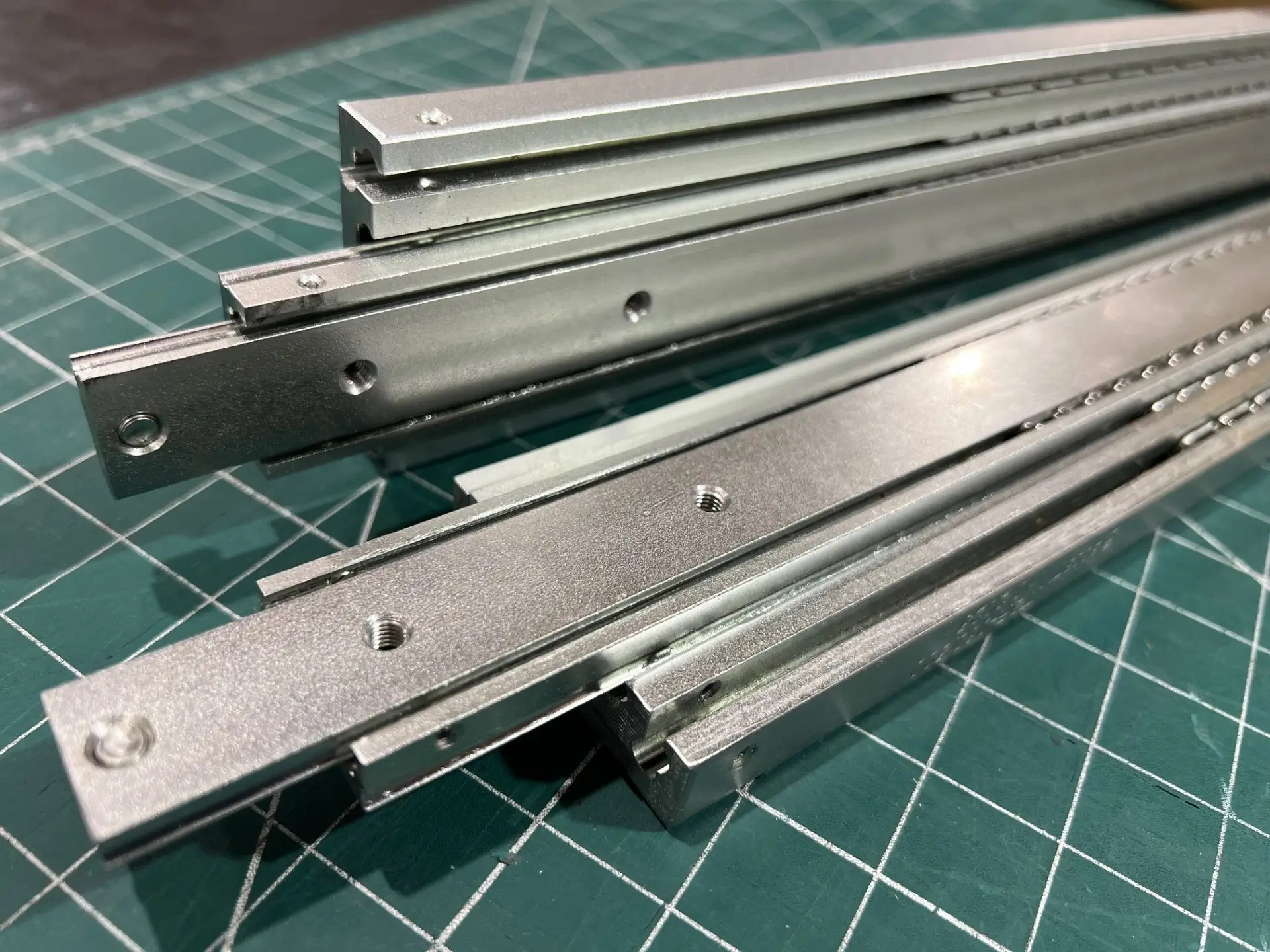

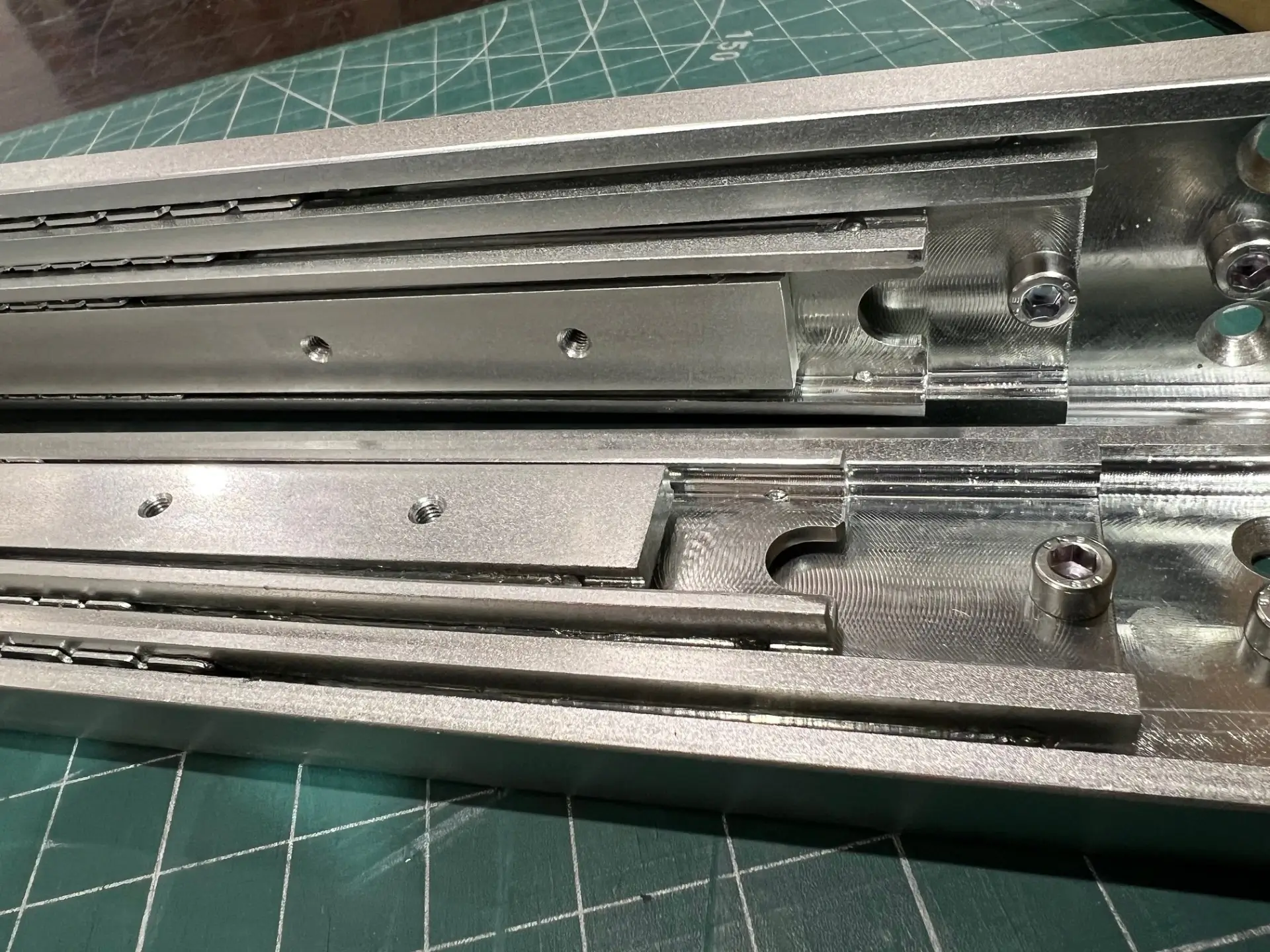

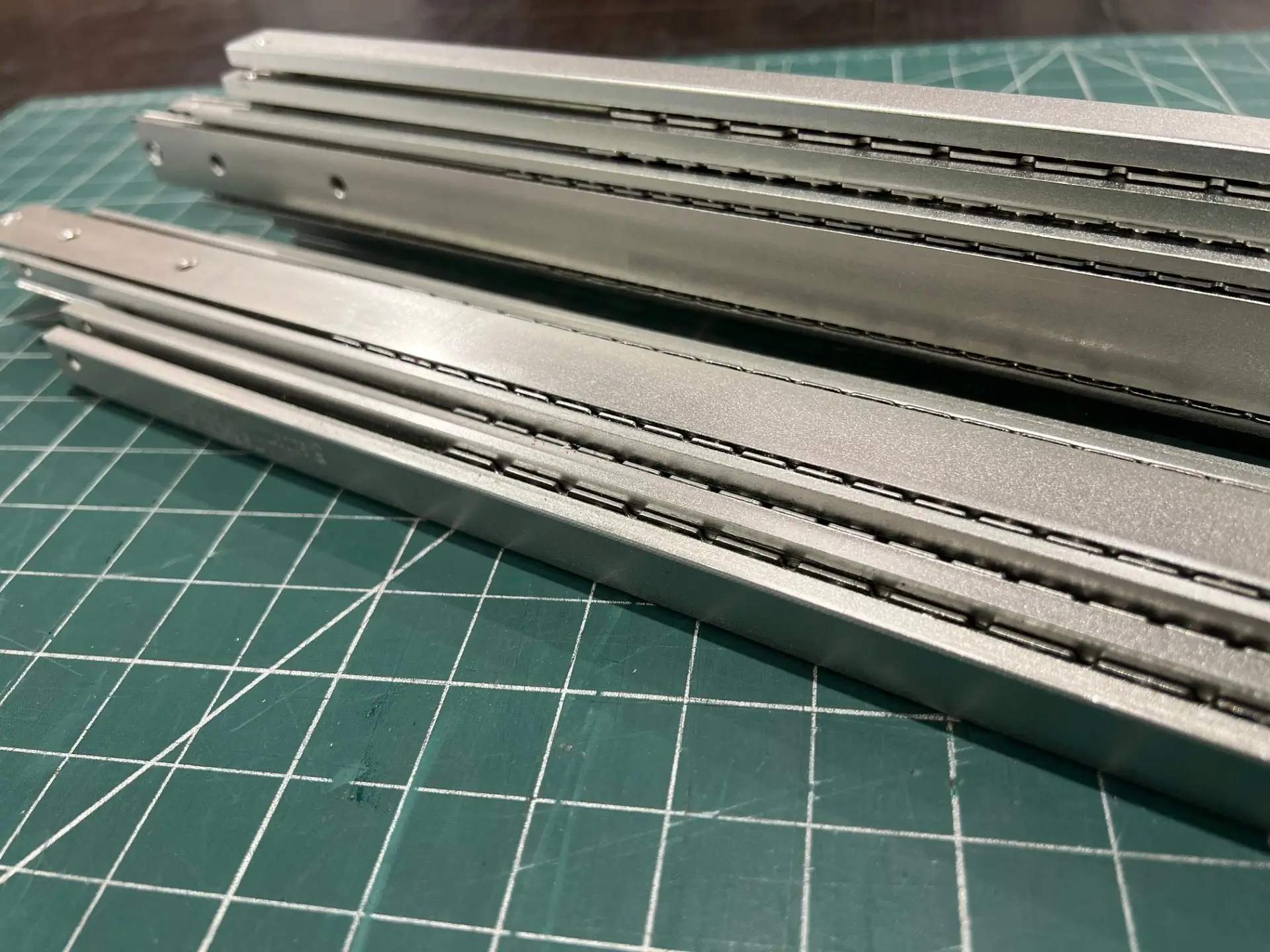

4015.XTSR060 (Over extension slide) - XTSR-60 (70-240kg) 150% Super Extension Extreme Duty Steel

Four beam telescopic slides enable the drawer to be extended out 150% from the stowed position. A closed length of 1,000mm can provide 1,500mm of travel (2,500mm fully extended). Ideal for vehicle use where fitting space is limited. The XTSR-60 is used widely throughout the defence industry, where slim over-extension slides are required to fit within a narrow space envelope.

The XTSR-60 is an extreme load/duty super extension telescopic slide (70-240 kg/pair) suitable for a wide range of applications. At 550mm 1 pair has a full extension load capacity of 220 kg.

Specification Details:

  • Space Envelope Width: 25mm
  • Height: 60mm
  • Closed Length: 150-1000mm
  • Extension Length: 225-1500mm
  • Maximum Load Capacity: 70-240 kg/pair
  • Number of beams: 4
  • Extension Type: Over
  • Material: Zinc plated steel
  • Vibration Resistence: 8

Profile:

Suitable For:

  • DEFENCE - Airborne - Shipborne - Vehicles
  • FIRE - Slide Drawers - Systems - Trays
  • FOOD TRUCK - Stowage & Sliding Drawers
  • MOTOR MANUFACTURING PLANT - Machinery
  • RV/MOTORHOME - Stowage & Sliding Drawers
  • SPECIAL VEHICLES - Coachbuilding - Response Vehicles
  • TRAINS - Battery Rafts - Doors - Seating

Four beam telescopic slides enable the drawer to be extended out 150% from the stowed position. A closed length of 1,000mm can provide 1,500mm of travel (2,500mm fully extended). Ideal for vehicle use where fitting space is limited. The XTSR-60 is used widely throughout the defence industry, where slim over-extension slides are required to fit within a narrow space envelope.

The XTSR-60 is an extreme load/duty super extension telescopic slide (70-240 kg/pair) suitable for a wide range of applications. At 550mm 1 pair has a full extension load capacity of 220 kg.

Constructed from cold drawn steel sections and fitted with caged ball bearings, the XTSR-60 telescopic slide has an excellent level of resistance to shock and vibration when supporting a dynamic load in the closed position. Accordingly, this slide is well suited to mounting on vehicles. This is a very strong nested slide design, providing for countersunk screws to secure the outer beam to the vehicle chassis. Threaded holes on the inner beam allow for the drawer to be fastened without unsightly nuts showing internally.

Additional product variations can be produced with bespoke closed lengths, extensions, mounting options, surface treatments and stainless ball bearings/cages. We do not recommend XTSR slides are fitted in the minor axis (flat), without due consideration to substantial load reductions.

The production process is ISO9001-2015 accredited. Our steel telescopic slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Laser cut ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401. Standard Professional Range steel slides are RoHS & REACH certified to withstand over 1,000 hours corrosion protection, until the appearance of red rust. This is due to the investment made in our own state of the art electrolytic alkaline zinc processing facility. Core steel C45 E+C, with a layer depth of 10-12 microns conforming to DIN EN ISO 9227 neutral salt spray testing. No white rust appearance within 120 hours. No red rust within 1,032 hours.

An individual slide weighs 7.08 kg per metre.

The XTSR-60 can be purchased online for global delivery by following this link. Please allow 5-6 weeks for manufacture, unless subscribed to our stock holding programme which facilitates next day supply.

Code

Closed Length (mm)

Extension (mm)

Max Load Capacity (kg)
4015.XTSR060.0150 150mm 225mm 180kg
4015.XTSR060.0200 200mm 300mm 200kg
4015.XTSR060.0250 250mm 375mm 215kg
4015.XTSR060.0300 300mm 450mm 220kg
4015.XTSR060.0350 350mm 525mm 225kg
4015.XTSR060.400 400mm 600mm 230kg
4015.XTSR060.0450 450mm 675mm 235kg
4015.XTSR060.0500 500mm 750mm 240kg
4015.XTSR060.0550 550mm 825mm 220kg
4015.XTSR060.0600 600mm 900mm 200kg
4015.XTSR060.0650 650mm 975mm 180kg
4015.XTSR060.0700 700mm 1050mm 160kg
4015.XTSR060.0750 750mm 1125mm 140kg
4015.XTSR060.0800 800mm 1200mm 120kg
4015.XTSR060.0850 850mm 1275mm 100kg
4015.XTSR060.0900 900mm 1350mm 90kg
4015.XTSR060.0950 950mm 1425mm 80kg
4015.XTSR060.1000 1000mm 1500mm 70kg
