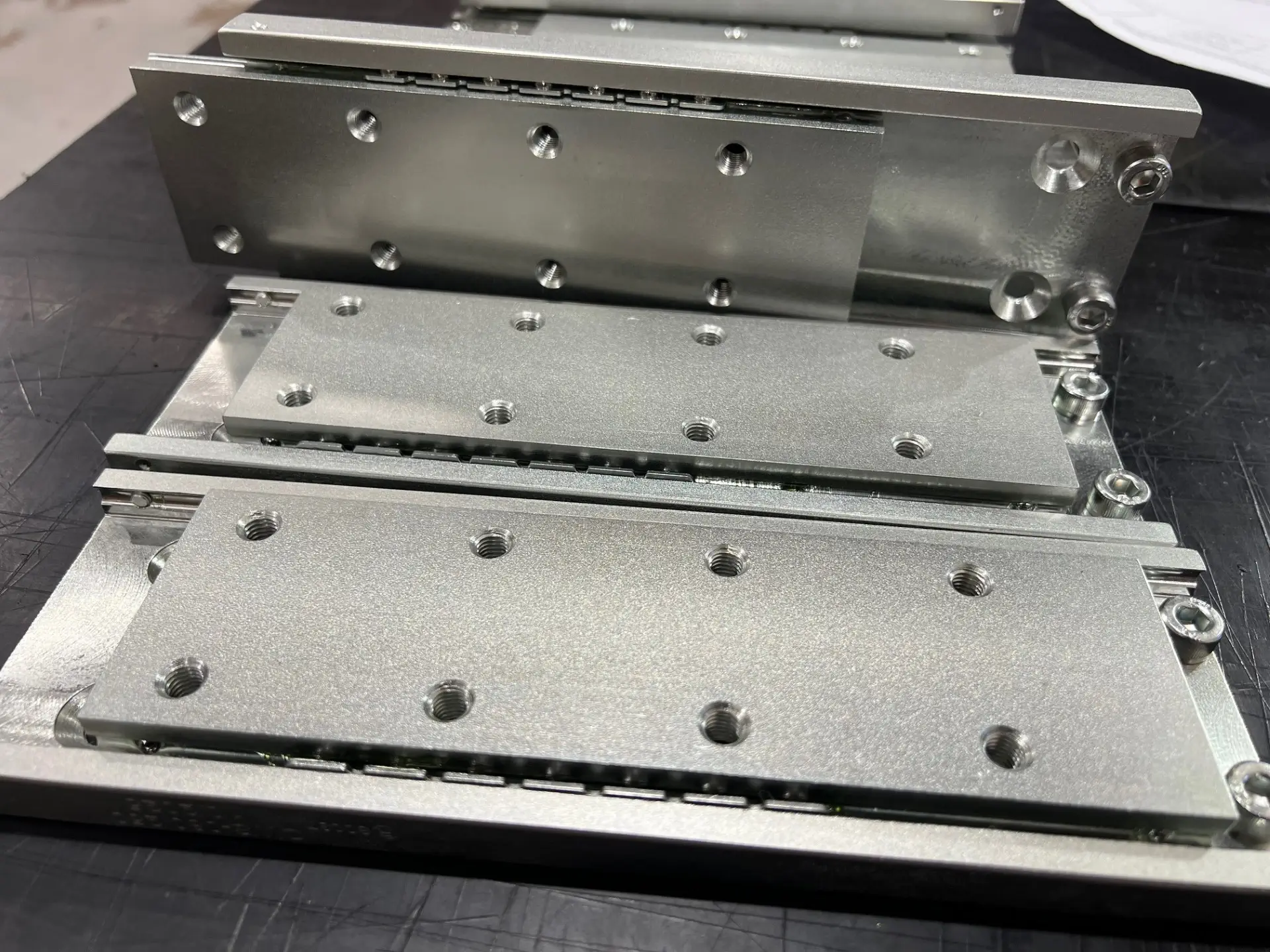

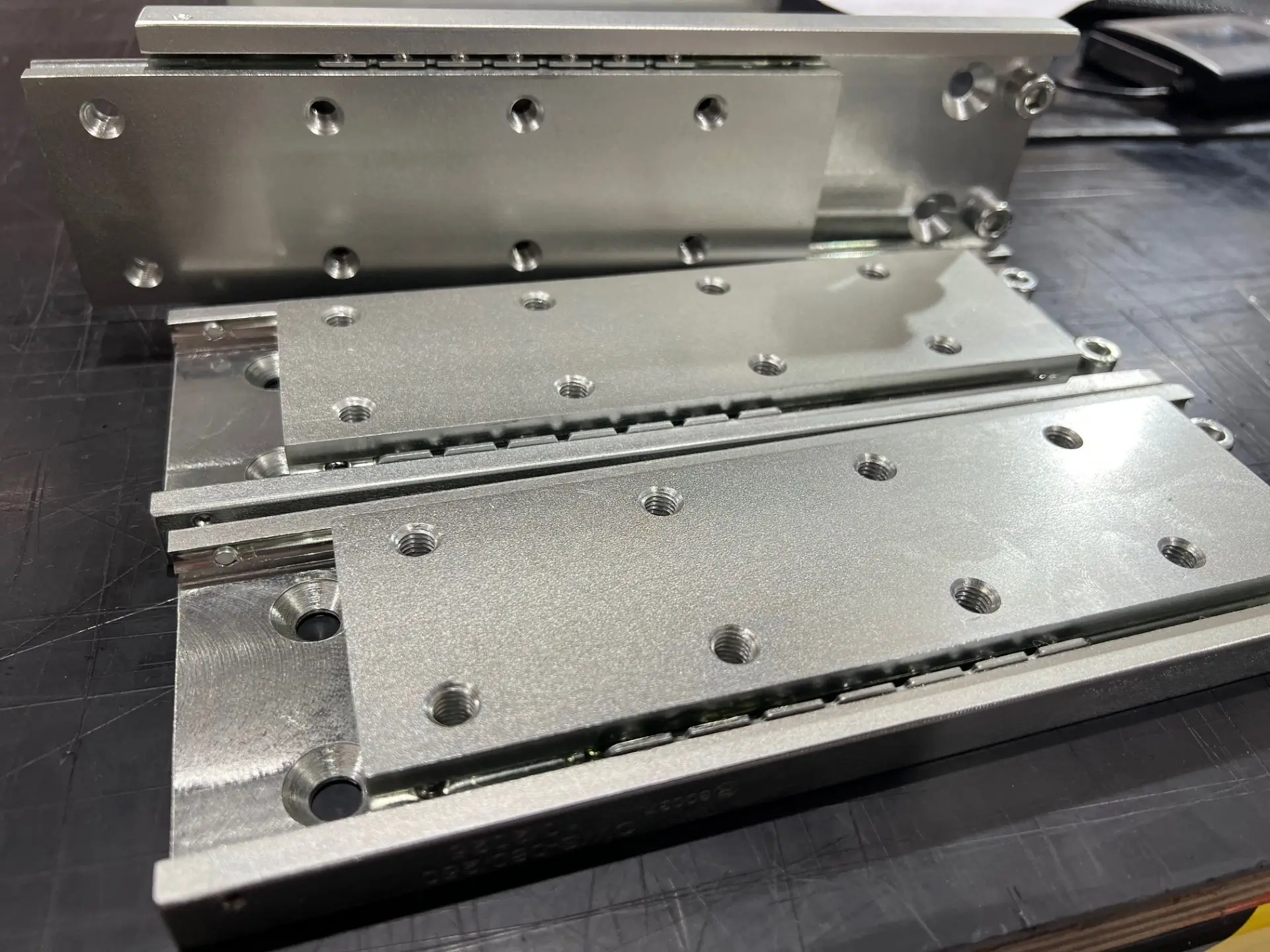

The OWS-80 is a rugged slide with a partial extension, which has been designed for load maximisation from a small space envelope. Particularly suited to extreme duty train battery boxes and military generators, it also has a wide range of applications where torsional strength is paramount.
This is an extreme load/duty 50% extension slide (450-1,210 kg/pair). At 550mm, 1 pair has a travel of 275mm and a load capacity of 1,110 kg. Constructed from cold drawn steel sections and precision milled ball tracks, the OWS-80 telescopic slide has a excellent level of resistance to shock and vibration when supporting a static load in the closed position. Accordingly this drawer runner is well suited to mounting within vehicles. This telescopic slide offers a compact design for the high load capacity. The slide also has good resistance to applied loads when in the extended position making it an excellent choice for dynamic applications and manually operated systems.
The OWS-80 drawer slide may also be fitted in the minor axis (flat). However, the load capacity will be reduced by 60-80% of the stated loading. It can be supplied with a 70% extension which will reduce the load slightly. Please consult our sales engineers for this no cost option.
The slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Laser cut ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401. An individual slide weighs 10.39 kg per metre.
The OWS-80 can be purchased online for global delivery by following this link.
Prices are per single slide. Loadings are given per extended pair. There are two slides per pair. The OWS-80 are manufactured to order, please allow 3-4 weeks for delivery, or can be stocked for immediate call off against scheduled orders.
