4015.DTSB090 (Telescopic Slide) - DTSB-90 (220-1050kg) Bi-Directional Front & Rear. Extreme Duty Steel

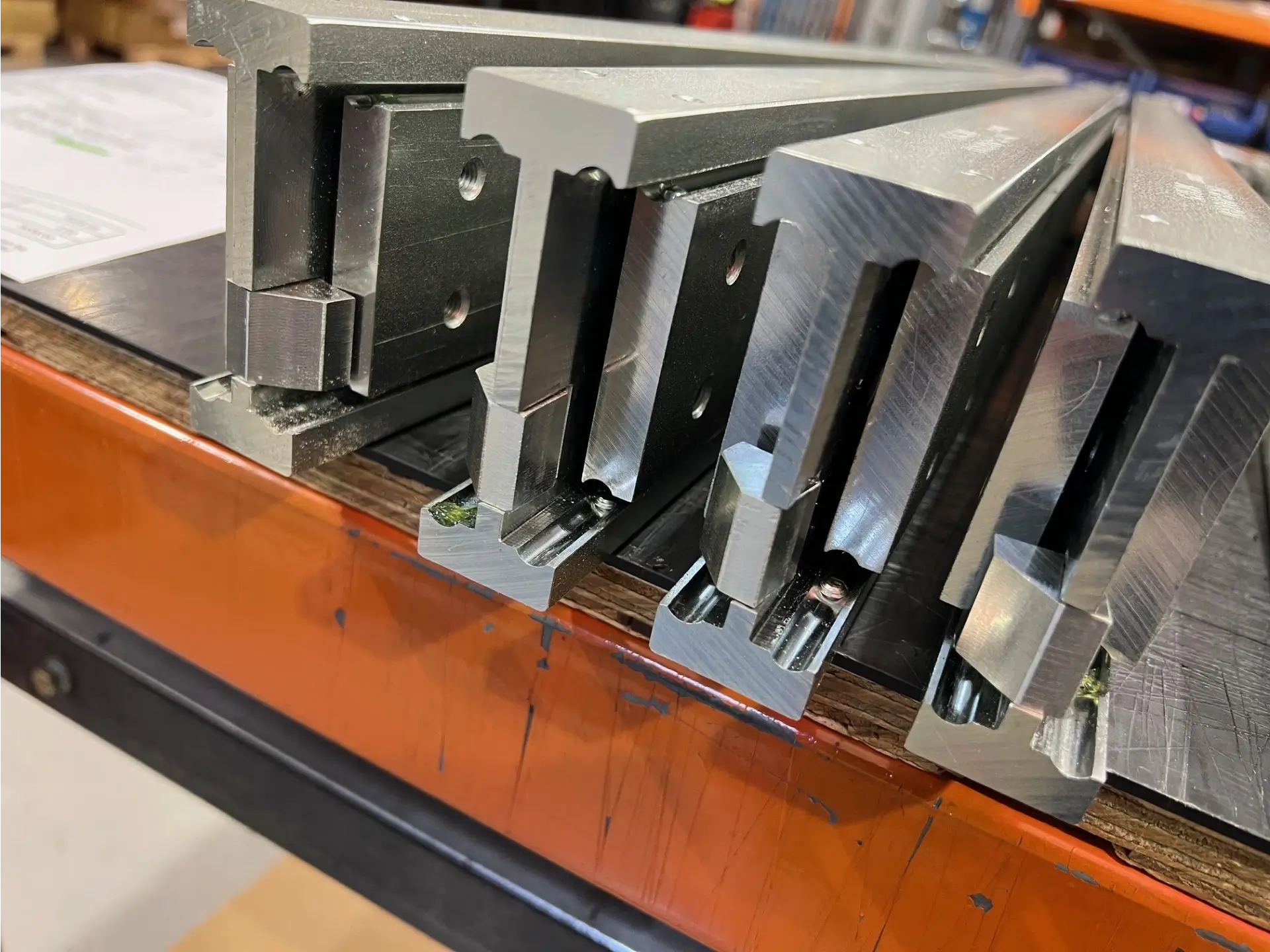

The DTSB-90 is a rugged slide fitted to extend fully front & rear, which has been designed for load maximisation from a small space envelope. Often specified for heavy generator access and bi-directional train battery boxes, it also has a wide range of applications where torsional strength is paramount. A unique rocker system is fitted to hold and release the beams in sequence, so the slides operate as a pair from stowed position, through forward and back out through the rear.

The DTSB-90 is an extreme load/duty 100% extension slide (220-1,050 kg/pair)At 550mm, 1 pair has a travel of 550mm to the front and to the rear, with a load capacity of 960 Kg. Constructed from cold drawn steel sections and precision milled ball tracks the DTSB telescopic slide has an excellent level of resistance to shock and vibration when supporting a dynamic load in the closed position. Accordingly, this slide is well suited to mounting on vehicles. This is a very strong compact slide, utilising the I beam format, which offers high resistance against axial and coaxial torque loading. Resulting in minimal deflection at full extension and low operating forces. The DTSB slides can be manufactured with threaded or countersunk hole patterns upon request, as per the website images.

Specification Details:

  • Space Envelope Width: 36mm
  • Height: 90mm
  • Closed Length: 200-3000mm
  • Extension Length: 200-3000mm
  • Maximum Load Capacity: 220-1050 kg/pair
  • Number of beams: 3
  • Extension Type: Bi-Directional
  • Material: Zinc plated steel
  • Vibration Resistance: 9

Profile:

Suitable For:

  • DEFENCE - Airborne - Shipborne - Vehicles
  • FIRE - Slide Drawers - Systems - Trays
  • FOOD TRUCK - Stowage & Sliding Drawers
  • MOTOR MANUFACTURING PLANT - Machinery
  • RV/MOTORHOME - Stowage & Sliding Drawers
  • SHOP FITTING - Sliding & Display Units
  • SPECIAL VEHICLES - Coachbuilding - Response Vehicles
  • TRAINS - Battery Rafts - Doors - Seating

The DTSB-90 is a rugged slide fitted to extend fully front & rear, which has been designed for load maximisation from a small space envelope. Often specified for heavy generator access and bi-directional train battery boxes, it also has a wide range of applications where torsional strength is paramount. A unique rocker system is fitted to hold and release the beams in sequence, so the slides operate as a pair from stowed position, through forward and back out through the rear.

The DTSB-90 is an extreme load/duty 100% extension slide (220-1,050 kg/pair)At 550mm, 1 pair has a travel of 550mm to the front and to the rear, with a load capacity of 960 Kg. Constructed from cold drawn steel sections and precision milled ball tracks the DTSB telescopic slide has an excellent level of resistance to shock and vibration when supporting a dynamic load in the closed position. Accordingly, this slide is well suited to mounting on vehicles. This is a very strong compact slide, utilising the I beam format, which offers high resistance against axial and coaxial torque loading. Resulting in minimal deflection at full extension and low operating forces.

Additional product variations can be produced with bespoke closed lengths, extensions, mounting options, surface treatments and stainless ball bearings/cages. The DTSB-90 drawer slide may also be fitted in the minor axis (flat). However, the load capacity will be reduced by 60-80% of the stated loading.

DTSB slides on accurate robotic pick & place or high speed shuttles require factory adaptation and customer in situ testing, prior to committing to production.  The beams are precision ground for accuracy and ball cages laser cut. However, constant low force usage will lead to some bearing migration without an operator to realign about every 2,000 cycles. The slides are limited to operational speeds of <0.3m/s. We are starting a laser hardening programme for the ball races, to launch in Jan 2024. This will increase the hardness to 62hrc, operational speeds to 0.7m/s and reduce the operational forces to traverse. This will make the slide ideal for robotic usage with a substantial economy over expensive induction hardened beams.

The production process is ISO9001-2015 accredited. Our steel telescopic slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Laser cut ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401. Standard Professional Range steel slides are RoHS & REACH certified to withstand over 1,000 hours corrosion protection, until the appearance of red rust. This is due to the investment made in our own state of the art electrolytic alkaline zinc processing facility. Core steel C45 E+C, with a layer depth of 10-12 microns conforming to DIN EN ISO 9227 neutral salt spray testing. No white rust appearance within 120 hours. No red rust within 1,032 hours.

An individual slide weighs 19.18 kg per metre.

The DTSB-90 can be purchased online for global delivery by following this link. Please allow 5-6 weeks for manufacture, unless subscribed to our stock holding programme which facilitates next day supply.

Code

Closed Length (mm)

Extension (mm)

Max Load Capacity (kg)

4015.DTSB090.0200 200mm 200mm 650kg
4015.DTSB090.0250 250mm 250mm 720kg
4015.DTSB090.0300 300mm 300mm 780kg
4015.DTSB090.0350 350mm 350mm 830kg
4015.DTSB090.0400 400mm 400mm 860kg
4015.DTSB090.0450 450mm 450mm 890kg
4015.DTSB090.0500 500mm 500mm 940kg
4015.DTSB090.0550 550mm 550mm 960kg
4015.DTSB090.0600 600mm 600mm 980kg
4015.DTSB090.0650 650mm 650mm 1000kg
4015.DTSB090.0700 700mm 700mm 1030kg
4015.DTSB090.0750 750mm 750mm 1040kg
4015.DTSB090.0800 800mm 800mm 1050kg
4015.DTSB090.0850 850mm 850mm 1045kg
4015.DTSB090.0900 900mm 900mm 1030kg
4015.DTSB090.0950 950mm 950mm 1015kg
4015.DTSB090.1000 1000mm 1000mm 995kg
4015.DTSB090.1050 1050mm 1050mm 980kg
4015.DTSB090.1100 1100mm 1100mm 950kg
4015.DTSB090.1150 1150mm 1150mm 920kg
4015.DTSB090.1200 1200mm 1200mm 900kg
4015.DTSB090.1250 1250mm 1250mm 880kg
4015.DTSB090.1300 1300mm 1300mm 850kg
4015.DTSB090.1350 1350mm 1350mm 820kg
4015.DTSB090.1400 1400mm 1400mm 790kg
4015.DTSB090.1450 1450mm 1450mm 740kg
4015.DTSB090.1500 1500mm 1500mm 710kg
4015.DTSB090.1550 1550mm 1550mm 690kg
4015.DTSB090.1600 1600mm 1600mm 660kg
4015.DTSB090.1650 1650mm 1650mm 640kg
4015.DTSB090.1700 1700mm 1700mm 620kg
4015.DTSB090.1750 1750mm 1750mm 580kg
4015.DTSB090.1800 1800mm 1800mm 540kg
4015.DTSB090.1850 1850mm 1850mm 500kg
4015.DTSB090.1900 1900mm 1900mm 470kg
4015.DTSB090.1950 1950mm 1950mm 440kg
4015.DTSB090.2000 2000mm 2000mm 420kg
4015.DTSB090.2050 2050mm 2050mm 410kg
4015.DTSB090.2100 2100mm 2100mm 400kg
4015.DTSB090.2150 2150mm 2150mm 390kg
4015.DTSB090.2200 2200mm 2200mm 380kg
4015.DTSB090.2250 2250mm 2250mm 370kg
4015.DTSB090.2300 2300mm 2300mm 360kg
4015.DTSB090.2350 2350mm 2350mm 350kg
4015.DTSB090.2400 2400mm 2400mm 340kg
4015.DTSB090.2450 2450mm 2450mm 330kg
4015.DTSB090.2500 2400mm 2500mm 320kg
4015.DTSB090.2550 2550mm 2550mm 310kg
4015.DTSB090.2600 2600mm 2600mm 300kg
4015.DTSB090.2650 2650mm 2650mm 290kg
4015.DTSB090.2700 2700mm 2700mm 280kg
4015.DTSB090.2750 2750mm 2750mm 270kg
4015.DTSB090.2800 2800mm 2800mm 260kg
4015.DTSB090.2850 2850mm 2850mm 250kg
4015.DTSB090.2900 2900mm 2900mm 240kg
4015.DTSB090.2950 2950mm 2950mm 230kg
4015.DTSB090.3000 3000mm 3000mm 220kg

Downloads Access

To download the CAD files and specifications for this product you need to be logged in.

Data Sheet & main product information -

Technical Description & Maintenance -

DTSB90 length 200mm- 3D STEP FILE - 4015.DTSB90 length 200mm

DTSB90 length 250mm- 3D STEP FILE - 4015.DTSB90 length 250mm

DTSB90 length 300mm- 3D STEP FILE - 4015.DTSB90 length 300mm

DTSB90 length 350mm- 3D STEP FILE - 4015.DTSB90 length 350mm

DTSB90 length 400mm- 3D STEP FILE - 4015.DTSB90 length 400mm

DTSB90 length 450mm- 3D STEP FILE - 4015.DTSB90 length 450mm

DTSB90 length 500mm- 3D STEP FILE - 4015.DTSB90 length 500mm

DTSB90 length 550mm- 3D STEP FILE - 4015.DTSB90 length 550mm

DTSB90 length 600mm- 3D STEP FILE - 4015.DTSB90 length 600mm

DTSB90 length 650mm- 3D STEP FILE - 4015.DTSB90 length 650mm

DTSB90 length 700mm- 3D STEP FILE - 4015.DTSB90 length 700mm

DTSB90 length 750mm- 3D STEP FILE - 4015.DTSB90 length 750mm

DTSB90 length 800mm- 3D STEP FILE - 4015.DTSB90 length 800mm

DTSB90 length 850mm- 3D STEP FILE - 4015.DTSB90 length 850mm

DTSB90 length 900mm- 3D STEP FILE - 4015.DTSB90 length 900mm

DTSB90 length 950mm- 3D STEP FILE - 4015.DTSB90 length 950mm

DTSB90 length 1000mm- 3D STEP FILE - 4015.DTSB90 length 1000mm

DTSB90 length 1050mm- 3D STEP FILE - 4015.DTSB90 length 1050mm

DTSB90 length 1100mm- 3D STEP FILE - 4015.DTSB90 length 1100mm

DTSB90 length 1150mm- 3D STEP FILE - 4015.DTSB90 length 1150mm

DTSB90 length 1200mm- 3D STEP FILE - 4015.DTSB90 length 1200mm

DTSB90 length 1250mm- 3D STEP FILE - 4015.DTSB90 length 1250mm

DTSB90 length 1300mm- 3D STEP FILE - 4015.DTSB90 length 1300mm

DTSB90 length 1350mm- 3D STEP FILE - 4015.DTSB90 length 1350mm

DTSB90 length 1400mm- 3D STEP FILE - 4015.DTSB90 length 1400mm

DTSB90 length 1450mm- 3D STEP FILE - 4015.DTSB90 length 1450mm

DTSB90 length 1500mm- 3D STEP FILE - 4015.DTSB90 length 1500mm

DTSB90 length 1550mm- 3D STEP FILE - 4015.DTSB90 length 1550mm

DTSB90 length 1600mm- 3D STEP FILE - 4015.DTSB90 length 1600mm

DTSB90 length 1650mm- 3D STEP FILE - 4015.DTSB90 length 1650mm

DTSB90 length 1700mm- 3D STEP FILE - 4015.DTSB90 length 1700mm

DTSB90 length 1750mm- 3D STEP FILE - 4015.DTSB90 length 1750mm

DTSB90 length 1800mm- 3D STEP FILE - 4015.DTSB90 length 1800mm

DTSB90 length 1850mm- 3D STEP FILE - 4015.DTSB90 length 1850mm

DTSB90 length 1900mm- 3D STEP FILE - 4015.DTSB90 length 1900mm

DTSB90 length 1950mm- 3D STEP FILE - 4015.DTSB90 length 1950mm

DTSB90 length 2000mm- 3D STEP FILE - 4015.DTSB90 length 2000mm

DTSB90 length 2050mm- 3D STEP FILE - 4015.DTSB90 length 2050mm

DTSB90 length 2100mm- 3D STEP FILE - 4015.DTSB90 length 2100mm

DTSB90 length 2150mm- 3D STEP FILE - 4015.DTSB90 length 2150mm

DTSB90 length 2200mm- 3D STEP FILE - 4015.DTSB90 length 2200mm

DTSB90 length 2250mm- 3D STEP FILE - 4015.DTSB90 length 2250mm

DTSB90 length 2300mm- 3D STEP FILE - 4015.DTSB90 length 2300mm

DTSB90 length 2350mm- 3D STEP FILE - 4015.DTSB90 length 2350mm

DTSB90 length 2400mm- 3D STEP FILE - 4015.DTSB90 length 2400mm

DTSB90 length 2450mm- 3D STEP FILE - 4015.DTSB90 length 2450mm

DTSB90 length 2500mm- 3D STEP FILE - 4015.DTSB90 length 2500mm

DTSB90 length 2550mm- 3D STEP FILE - 4015.DTSB90 length 2550mm

DTSB90 length 2600mm- 3D STEP FILE - 4015.DTSB90 length 2600mm

DTSB90 length 2650mm- 3D STEP FILE - 4015.DTSB90 length 2650mm

DTSB90 length 2700mm- 3D STEP FILE - 4015.DTSB90 length 2700mm

DTSB90 length 2750mm- 3D STEP FILE - 4015.DTSB90 length 2750mm

DTSB90 length 2800mm- 3D STEP FILE - 4015.DTSB90 length 2800mm

DTSB90 length 2850mm- 3D STEP FILE - 4015.DTSB90 length 2850mm

DTSB90 length 2900mm- 3D STEP FILE - 4015.DTSB90 length 2900mm

DTSB90 length 2950mm- 3D STEP FILE - 4015.DTSB90 length 2950mm

DTSB90 length 3000mm- 3D STEP FILE - 4015.DTSB90 length 3000mm

Defence

Ground, marine and air defence vehicle applications such as equipment stowage, mountings for weapon systems and racks for electronic systems

Ship Borne

Applications can range from slide based storage systems, lockers and furniture, through rack mounted electronic components, and onto operational and weapon systems requiring linear movement. If required products manufactured from high grade stainless steel can be supplied offering highest levels of corrosion resistance and low magnetic signatures.

Vehicles

Slides and bespoke sub-assemblies for mounting electronic and other equipment including weapon components on vehicles ranging from lightly armoured personnel vehicles (radio and other electronic components) through to battlefield tanks (internal storage, ammunition handling, slide-out generators and workstations).

Fire

Equipment stowage components and systems as installed on fire engines

Slide Drawers

Solid section steel slides lengths from 300mm to 2,000mm for pull-out equipment drawers. Extensions from 50% to 150% of closed length can be supplied, in addition slide systems that offer sequential dual extension with bi-directional travel allowing the drawer to extened from either side of the vehicle. This enables rescue crews to access vital equipment quickly and safely, regardless of the vehicle's orientation to the emergency scene.

Systems

Our range of reinforced heavy duty steel slides fitted with additional ball tracks and reinforceing ball bearings are ideally suited for use in some of the more unique applications. Together with a range of slides designed using a rigid "I" beam construction our products offer execelent performance under conditions that may exert high direct and tortional loadings as experienced in such applications as pull-out equipment boards and vertical shelves.

Trays

Following extensive testing on selected models our slides are used by the U.K.'s leading producers of complete equipment carriers. These complete tray systems are ready for quick installation, including bespoke mountings for specialist equipment such as auxilliary pumps, tools, hoses and rescue equipment.

Lock-in and lock-out mechanisms facilitate quick and safe operation of the equipment carrier, as well as hold the fully-loaded drawer securely in position when the vehicle is in motion or at the scene.

Food Truck - Mobile Catering

Whether you have a full side trailer extension to build or a small pull out coffee machine tray from the back of a Vespa Ape, we have the right slide for you. From specialised mobile military deployment catering units to market trader applications, we have the knowledge to make it happen.

We are a privately-owned company, established over 30 years and our slides and tool mounts cover every possible application within the catering and hospitality industry.

Our speciality are bespoke telescopic slides suited to catering trailers and full van conversions.

If you require a light load slide we suggest using our standard rolled steel slides covered in this section, for larger full vehicle conversions up to 2000kg we recommend our cold drawn steel section I beam heavy duty slides. The rigidity and strength of the material used in the manufacture, without use of plastic components, make the slides appropriate for heavy duty usage which demand resistance to shock and vibration.

In addition to telescopic slides project we supply auxiliary equipment to fix pipes or other tools.

Our Fulterer range of slides comply with NSF food grade specifications to allow for installation of our drawer slide in direct contact with food.

Motor Manufacturing Plant

Telescopic Slide and Linear Rail components for lineside delivery and component handling systems

Automated Production Lines

Linear movement components and telescopic slides for use on repetition-intensive automated production lines. Components require a high resistance to localised wear patterns, uniform operating loads and designs capable of working at fast speeds with high accelerations.

Manually Operated

Linear rail and telescopic slide products for component delivery and handling at line-sideassembly stations.

The breadth of our product range gives you an unparalleled advantage when engineering solutions for delivery systems that have to accommodate large irregular shaped components or sub assemblies within space restricted line-side delivery stillages.

Correct selection and specification of the slide system will ensure maximisation of the space inside the delivery stillage and production efficiency while accommodating the natural variations of manual handling present in a time sensitive assembly environment.

RV & Motorhome

Shop Fitting & Display

The retail sector is increasingly becoming a shopping ‘experience’ therefore the fittings for such outlets are vital to fit the bill. With our full range of slides, we can help you achieve both design and functionality.

Our lighter duty slides are well suited for smaller drawers or applications where little load is applied when extended. If the project requirements are to move a wall from its original position to display goods a bottom mount slide might be more suitable due to space restrictions. The Fulterer Range of vertical pull out slides provides stability, load capacity as well as the sleek design required in current retail outfits. All slides in the Fulterer range are available in different finishes (white, grey and black) which can be supplied against MOQ’s.

Special & Commercial Vehicles

Our telescopic slides and tool mounts cover even the most demanding project for commercial vehicles. Smaller, lighter duty rolled steel or solid section slides from our General Devices range will suit a keyboard tray or a display screen, whereas cold drawn steel section slides will fit requirements for full vehicle extension such as mobile broadcast vehicles carrying several 1000kg’s.

With over 30 years of experience, we are more experienced than any other supplier and manufacturer to be able to advise of suitable and performing products.

Sliding Systems are an approved supplier for many prestigious and well-regarded manufacturers both in the United Kingdom and abroad.

With our flexible production facilities, we can accommodate any project and are pleased to assist with special requests whenever possible. Applications involving shock and vibration call for heavy duty, cold drawn steel section slides which we are also able to supply in 316L marine grade stainless steel. If weight or corrosion resistance are parameters that are important we suggest Aluminium T6 section slides, available in load capacities up to 330kg.

Outdoor applications can be fixed in place with specialist marine grade 316L hooks, which safely hold tool boxes or vehicle covers in place.

Response Vehicles

Roadside assistance and other categories of vehicle that need to stow and provide easy access to equipment can be enhanced through appropriate use of telescopic drawer slide and linear rail systems.

The twin requirements of operator safety and operational effectiveness are of paramount importance. GSF's ability to select and adapt from an unrivalled base product range, and its ability to assist with the design of bespoke and space-saving drawer systems enable us to make a significant contribution to your own product design.

Trains

From heavy duty under-train battery rafts to high-repeat door systems and, increasingly, sliding seat systems, Sliding Systems has products that suit all of these applications

Battery Rafts

Heavy duty specialist slide components for mounting under-train battery rafts. The slides must, like the carriage as a whole, comply with crash testing criteria and, as high speed trains become ever more prevalent, there is an increasing requirement that the slides are able to hold heavy battery sets in position despite large dynamic loads.

Battery bays can also house a corrosive atmosphere over long periods, and therefore careful specification of corrosion resistant finishes are required. The nitration option available onour relevant product range provides this resistance as well as considerably strengthening the surface structure of the slide itself.

To facilitate ease of fitting and maintenance, GSF is able to design bespoke fitting brackets including, for example, positioning pins.

Despite improvements to train suspensions, running with metal wheels on metal tracks also makes vibration and shock relevant issues to consider in slide design. Finally, as battery rafts constitute one of the heaviest loads typically mounted on slides, careful consideration is required to the consequent force required to push-in or pull-out the battery raft and the strength and shock-reduction characteristics of the end stops. These are all critical factors that should direct the slide specification.

Doors

The use of telescopic slides or linear rails to mount train doors requires a product able to deal with both the dynamic loads and crash survival criteria that are inevitably relevant to train-based applications. In addition the components have to operate reliably and with low maintenance requirements over a very high number of repetitions. Doors on underground trains are required typically to open and close up to 20 times an hour day after day over the working life of the carriage.

To withstand such a high level of repetitions, the ball bearings and the associated ball track tracks need to be hardened to resist pitting and corrosion. Cold drawn steel slides also perform better over time, as the slide profile is less prone to long term profile deformation than is the case for cold rolled profiles.

Seating

Train operators are increasingly offering adjustable seating in first class passenger compartments. Simplicity and durability are key determinants of which linear rail and slide components will work successfully in ensuring that the seat operates reliably as intended and without a requirement for maintenance activity.
